3.25mm x 14mm TSI Implant

Description:

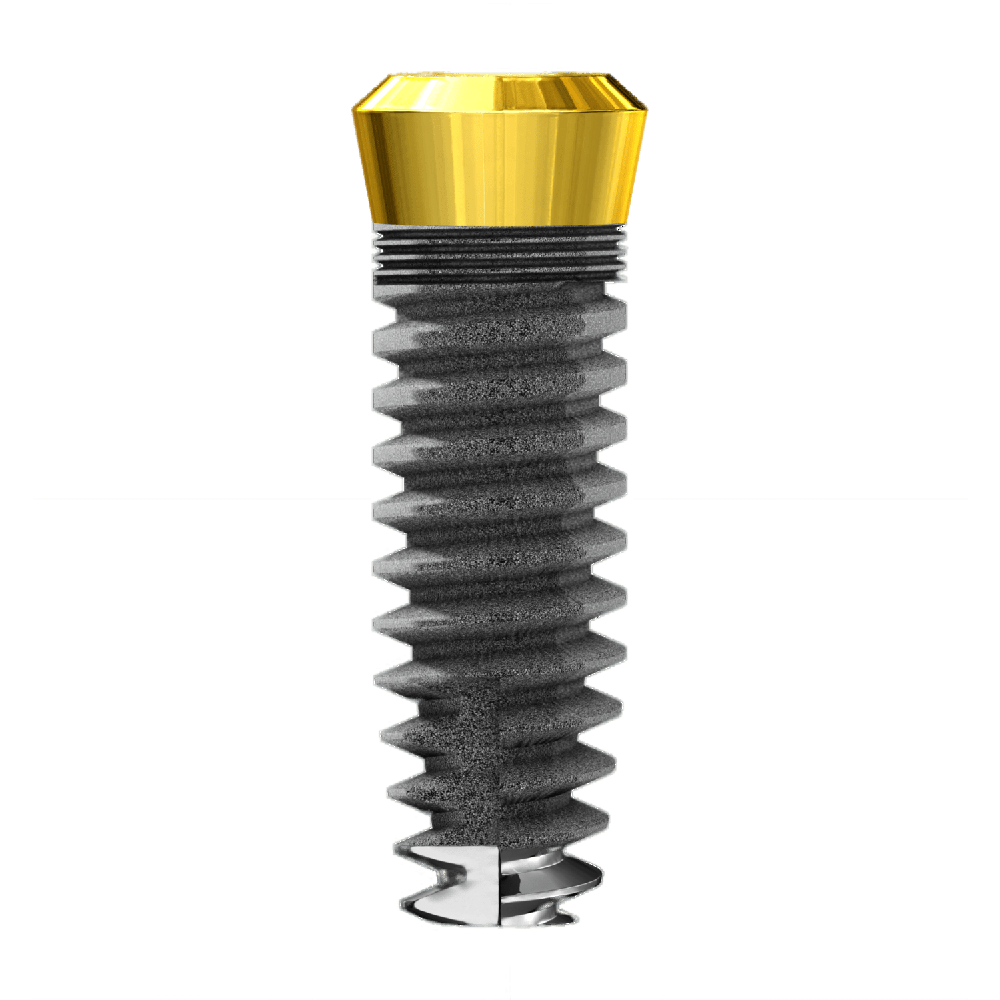

The Prosthetic Region Implant, or ERI, has a 1mm titanium nitride coated embedded tapered platform and is designed to be placed slightly above bone level. The ERI also has an internal hex interface, mini cortico-threads and Bull Nose Auger™ Tip.

Diameter	Length	Collar	Platform
3.25mm	8, 10, 12, 14, 16mm	1mm	3.7mm
4.0mm	8, 10, 12, 14, 16mm	1mm	4.7mm
5.0mm	8, 10, 12, 14, 16mm	1mm	5.7mm

Prosthetic Options for 3.25mm TSI Implants:	Item #:
Straight Shielded Abutment - Short	3150 TSI
Impression Coping	3.25 IC
Analog	TSIA 3.25
